All-in-One Solar Street Light for Urban Roads DM Series 60W–150W
All-in-One Solar Street Light with Modular LED Design for Urban Roads, Municipal Projects and EPC Solar Lighting Solutions.
- Modular LED design with 4 to 18 independent modules for flexible urban lighting configurations
- High-efficiency MPPT charging system with optimized solar energy utilization in different weather conditions
- LiFePO₄ battery system with BMS protection and up to 5–7 days backup autonomy
- High lumen output up to 33,000lm for urban roads and municipal lighting projects
- IP66 aluminum alloy housing with long-term durability in outdoor environments
DM Series All-in-One Solar Street Light with 4–18 LED Modules
DM Series (60W–150W) All-in-One Solar Street Light is designed for urban roads, municipal infrastructure, and EPC lighting projects, providing a reliable and low-maintenance solar lighting solution. Featuring a modular LED design with 4–18 independent modules and up to 33,000lm high lumen output, the DM Series offers flexible lighting configurations for different road conditions, installation heights and illumination requirements. Integrated with high-efficiency solar charging, intelligent MPPT control and LiFePO₄ battery technology, it delivers stable lighting performance with up to 5–7 days of backup autonomy for areas with limited grid access or variable weather conditions. The IP66 aluminum alloy housing and optimized thermal design improve durability and heat dissipation, helping reduce maintenance requirements and long-term operating costs for municipal, commercial, and infrastructure projects.
All-in-One Solar Street Light for Urban Roads DM Series 60W–150W Technical Specifications & Datasheet
| Model | DM | ||||
| Watts(w) | 60W | 80W | 100W | 120W | 150W |
| Lumens(Lumens) | 10800-13200LM | 14400-17600LM | 18000-22000LM | 21600-26400LM | 27000-33000LM |
| Battery(AH) | 3.2V 100AH | 3.2V 120AH | 12.8V 36AH | 12.8V 42AH | 12.8V 54AH |
| Solar Panel | 6V 70W | 6V 80W | 18V 90W | 18V 100W | 18V 120W |
| LED Chip | Philips/Osram/USA Bridgelux | ||||
| CCT(K) | 2700-6500K(customized) | ||||
| CRI | >70 | ||||
| Lighting Efficiency | 180-220lm/w | ||||
| Rainy Days | 5-7 cloudy/ rainy days | ||||
| Work Temperature | -25℃－+65℃ | ||||
| Work Mode | Auto ON/OFF, Time Dimming, Motion Sensor (Can be modified based on requirement, with or without sensor) | ||||
| Material | Aluminium alloy | ||||
| Pole Upper Diameter | φ70-φ76mm | ||||
| Controller | MPPT | ||||

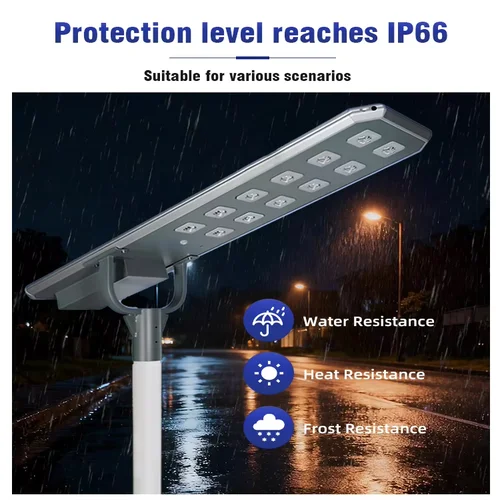

| IP Rating/IK Class | IP66/IK09 | ||||
| Mounting Height(Recommend) | 4-6m | 5-7m | 6-10m | 8-12m | 8-12m |
| Space between Poles(Recommend) | 15-25m | 20-25m | 20-30m | 25-35m | 25-35m |
| Warranty | 5 Years | ||||
Get Free DM Solar Street Light Quote
DM Series All-in-One Solar Street Light offers bulk supply, modular design, LiFePO4 battery system and 5-year warranty for urban roads and EPC lighting projects. Get your quote today.
DM Series All-in-One Solar Street Light with 4–18 LED Modules & 33,000lm Output Video
All-in-One Solar Street Light for Urban Roads DM Series 60W–150W Project & Application Cases
The DM Series is designed for urban roads, municipal streets, residential developments, commercial roads, industrial access roads and dual-carriageway projects that require different lighting outputs within one product platform. Its 60W–150W range, 4–18 independent LED modules and output of up to 33,000 lumens allow EPC contractors and municipal buyers to match the luminaire to different road widths, pole heights and illumination targets. In markets such as Morocco and Nigeria, buyers may describe the visible module configurations as 4 eyes, 6 eyes, 8 eyes or more; this terminology can help identify the preferred appearance, while the final model should still be selected according to actual lumen output, optical distribution and roadway requirements.
DM is suitable for municipal road upgrades, new residential communities, industrial parks, school and hospital access roads, transport terminals and public infrastructure projects in Morocco, Nigeria, Ghana, Kenya, Senegal and Côte d’Ivoire, as well as urban and industrial applications in Saudi Arabia, the UAE, the Philippines and Indonesia. For an accurate project proposal, buyers should provide the road width, pole height, pole spacing, target lux and uniformity, nightly operating hours, required backup days, local solar radiation, ambient temperature and wind conditions. Sungreat can then recommend the appropriate DM power, module configuration, battery capacity and lighting layout instead of selecting the product only by wattage or the number of visible “eyes.”
All-in-One Solar Street Light for Urban Roads DM Series 60W–150W Production Process

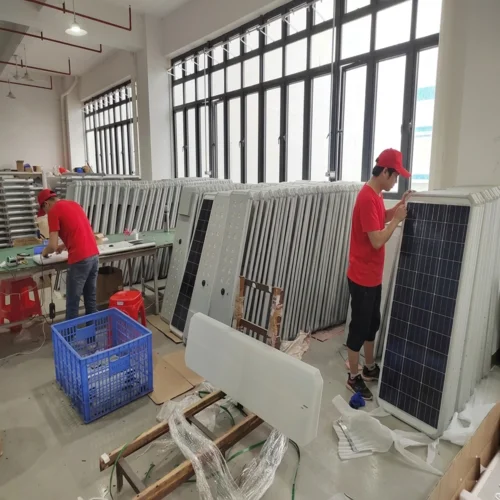

DM production focuses on configuration consistency across the LED modules, solar panel, LiFePO₄ battery, MPPT controller and control program. Before assembly, the required wattage, module layout, working mode, colour temperature and pole interface are checked against the confirmed project specification, reducing the risk of receiving the correct housing with the wrong electrical configuration.
01 Configuration Matching: Each 60W–150W model is matched with its corresponding solar panel, battery capacity and MPPT controller. Time-dimming schedules, motion-sensor settings and automatic ON/OFF functions are confirmed before production begins.

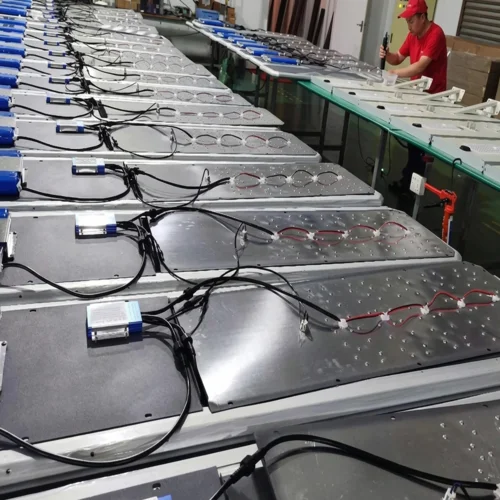

02 Modular LED Assembly: The LED modules, internal cables, connectors and control components are installed and checked individually. Particular attention is given to terminal tightening, cable routing and heat dissipation because multi-module luminaires contain more internal connection points than conventional single-board street lights.

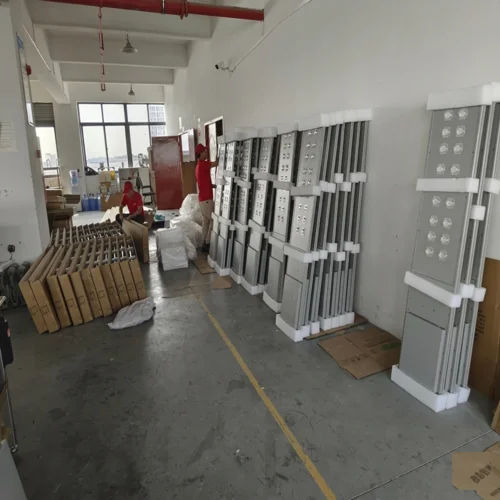

03 Protection & Functional Testing: The aluminium housing, fasteners, sealing points and battery compartment are inspected before functional testing. Each unit is checked for solar charging, automatic switching, time dimming, sensor response and electrical operation, followed by a 48-hour continuous power-aging test before final inspection. The current DM specification lists an IP66 housing, MPPT control and configurable operating modes.
04 EPC Project Release: For municipal and bulk orders, production can follow the approved wattage, module layout, battery configuration and control program. Technical datasheets, inspection reports, installation guidance and project submittal documents can be prepared for contractor review, delivery inspection and site handover.
All-in-One Solar Street Light for Urban Roads DM Series 60W–150W Overview & Details

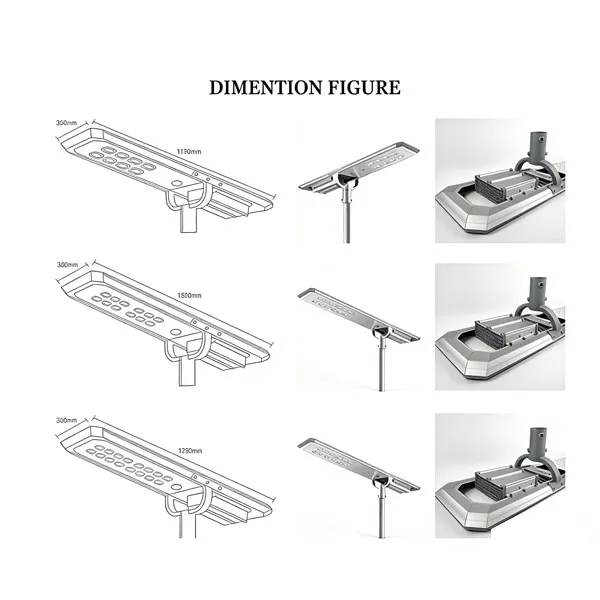

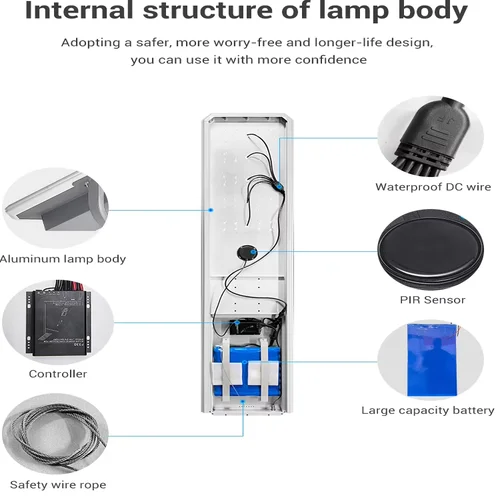

The DM Series integrates the solar panel, LiFePO₄ battery, MPPT controller and modular LED light source into one platform for urban roads, municipal streets and infrastructure lighting projects. Five available power levels from 60W to 150W provide 10,800–33,000 lumens, with recommended mounting heights from 4m to 12m and preliminary pole spacing from 15m to 35m. The light source can be configured with 4–18 visible LED modules, often described as different “eyes” by buyers in African markets, while the final configuration should be selected according to road width, target illuminance, uniformity, pole height and optical distribution rather than module quantity alone.
| Configuration Item | Available Options | Project Selection Basis |
|---|---|---|

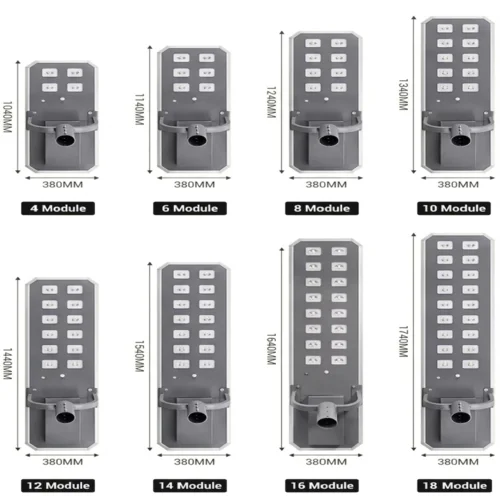

| LED Module Layout | 4–18 independent LED modules | Preferred housing layout, required output, road type and maintenance plan |
| Rated Power & Output | 60W / 80W / 100W / 120W / 150W; 10,800–33,000lm | Road width, mounting height, target lux, uniformity and pole spacing |

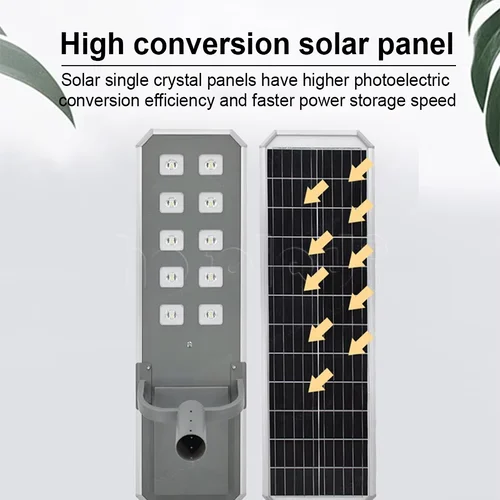

| Solar Panel | 70W / 80W / 90W / 100W / 120W | Selected lamp power, local solar radiation and required nightly operation |
| LiFePO₄ Battery | 3.2V 100Ah / 120Ah; 12.8V 36Ah / 42Ah / 54Ah | Working hours, dimming schedule, seasonal weather and required backup days |

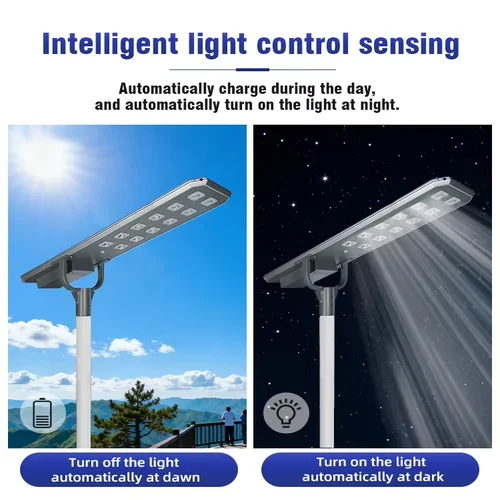

| Lighting Control | Automatic ON/OFF, time dimming and optional motion sensor | Traffic level, energy-saving target and night-time lighting schedule |
| Colour Temperature | 2700K–6500K, customizable | Tender specification, local preference and roadway application |
| Installation Reference | 4–12m mounting height; 15–35m preliminary spacing; φ70–φ76mm pole interface | Road layout, pole design, lighting simulation and installation conditions |
| Outdoor Protection | IP66 / IK09; operating temperature from −25°C to +65°C | Rain, dust, ambient temperature and outdoor impact exposure |
The listed configurations allow the DM platform to be adjusted for residential streets, city roads, commercial districts, industrial access roads and wider municipal roads without changing to a completely different luminaire family. For project matching, buyers should provide the road width, pole height, proposed spacing, target lux and uniformity, nightly operating hours, dimming requirements, backup days, local solar radiation, ambient temperature, wind conditions and required colour temperature. Sungreat can then recommend the appropriate power level, LED module layout, solar panel, battery configuration and control program, followed by an IES or DIALux lighting proposal when required.
All-in-One Solar Street Light for Urban Roads DM Series 60W–150W Packaging & Delivery

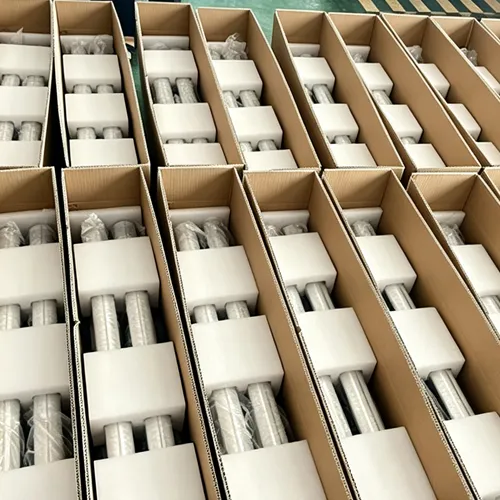

Each DM solar street light is packed with protective foam and a reinforced export carton to protect the integrated solar panel, modular LED section, aluminium housing and mounting interface during handling and international transportation. For project orders containing different wattages or LED module layouts, each carton can be marked with the model, power, module configuration, quantity and project area, helping distributors and installation teams identify the correct units without repeated unpacking. Before shipment, the quantity, control program, mounting accessories, carton labels and packing list are checked against the approved order, while datasheets, installation instructions, inspection records, warranty documents and agreed spare parts can be prepared for customs clearance and project handover. Samples and urgent orders can normally be shipped by courier or air freight, with an estimated transit time of approximately 10–14 days, while bulk EPC and municipal orders can be arranged by LCL or FCL sea freight, typically requiring about 25–45 days depending on the destination port, shipping route and customs clearance. Final packing and delivery arrangements are confirmed according to order quantity, destination country, Incoterm and required arrival date.
FAQ of All-in-One Solar Street Light for Urban Roads DM Series 40W–150W
Modular LED design allows flexible lighting configurations based on different road conditions, installation heights and illumination requirements. DM Series features 4–18 independent LED modules with up to 33,000lm output, helping EPC contractors and municipal projects achieve reliable lighting performance with easier maintenance.
The installation height and pole spacing of solar street lights depend on road width, lighting requirements and project standards. DM Series is designed for urban road applications with typical installation heights of 6–12m and optimized spacing up to 30–40m, helping EPC contractors achieve balanced illumination coverage and reduce unnecessary installation costs.
DM Series is equipped with a LiFePO₄ battery system and intelligent BMS protection to ensure safe and stable energy storage. Depending on system configuration and local solar conditions, it can provide up to 5–7 days of backup autonomy, helping urban roads and municipal projects maintain reliable lighting during cloudy and rainy periods.
| Weather Condition | Recommended Backup |
|---|---|
| Normal sunlight area | 3–5 days |
| Seasonal rainy area | 5–7 days |
| Long cloudy period | Customized design |
DM Series is designed for long-term outdoor operation with modular LED components, durable IP66 housing and reliable system protection to simplify future maintenance. With a product failure rate below 0.2% and professional after-sales support, Sungreat Energy provides spare parts support for bulk projects, including 1 free spare component for every 100 units ordered to help EPC contractors reduce downtime and maintenance costs.
Yes, DM Series is designed to support different project timelines, from sample testing to large-scale commercial orders. For product evaluation and project approval, samples can usually be prepared within 2–3 working days. For bulk projects, around 500 units can typically be completed within 2–3 weeks, while orders of approximately 1,000 units usually require about 1 month depending on customization requirements and production schedules. For urgent projects with strict deadlines, Sungreat Energy can coordinate production plans, optimize delivery arrangements and provide flexible solutions to help EPC contractors and project partners complete installations on time.
DM Series solar street lights are designed for different outdoor environments and project requirements, including urban roads, municipal infrastructure, residential areas, highways and remote locations without reliable grid power. The system is suitable for markets with strong solar resources and diverse climate conditions, such as Kenya, Tanzania, Uganda and Nigeria in Africa; Saudi Arabia, UAE, Oman and Jordan in the Middle East; Thailand, Philippines and Indonesia in Southeast Asia; as well as Mexico, Brazil and Chile in Latin America.
Different regions may have different challenges, including high temperatures, seasonal rainfall, dust environments or limited electricity access. DM Series can be configured according to local solar radiation, temperature conditions, road width, lighting requirements and installation standards. The flexible design with different LED module combinations, battery capacities and solar panel configurations allows the product to adapt to various applications, from city roads and residential communities to rural roads and off-grid areas.
For EPC contractors and project developers, Sungreat Energy provides technical documents, product specifications, installation guidance and project configuration recommendations to support different regional requirements and large-scale solar lighting applications.
