Engineering resilient solar-storage infrastructure to eliminate grid volatility and power remote industrial-rural corridors in the Sultanate of Oman.
1. Project Overview
Operating critical electrical infrastructure across Oman’s harsh arid terrain presents severe environmental and logistical hurdles. Nama Electricity Distribution Company faced persistent challenges with high grid extension costs, transmission line vulnerability, and intermittent power stability in remote sectors. Traditional diesel-reliant setups suffered from high operational expenditures, heavy carbon footprints, and frequent maintenance bottlenecks due to ambient extreme heat and dust accumulation.
1.1 Core Engineering Obstacles
- Grid Instability: High voltage fluctuations and vulnerability to regional power dropouts.
- Thermal Stress: Extreme ambient temperatures severely degrading standard battery chemistry and inverter efficiency.
- Economic Friction: Unsustainable recurring diesel fuel logistics and maintenance overheads in isolated zones.
2. Microgrid Specifications

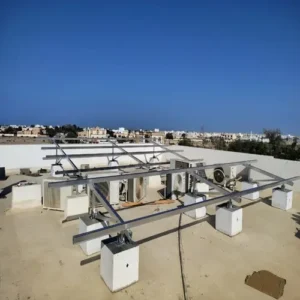

To address these challenges, Sungreat Energy deployed a robust, highly integrated hybrid solar-storage architecture tailored for desert resilience. The deployment comprised 20 synchronized high-capacity units installed between August 2020 and October 2020.
2.1 Technical Specification
| Parameter | Specification | Scope |
|---|---|---|
| System Model | SY Series | Custom Arid-Deployment Microgrid Unit (Total 20 Units) |
| Battery Chemistry | LiFePO₄ Battery (51.2V / 200Ah × 2) | High thermal stability and extended cycle life |
| Total Storage Capacity | 20.480 kWh | Sustained backup during low-irradiance windows |
| Battery Management (BMS) | 150A Smart BMS | Real-time cell balancing, thermal throttling, and fault isolation |
| Photovoltaic Modules | 10 × 550W N-type PV Panels | Bifacial high-efficiency generation with low degradation rates |
| Total PV Generation Power | 5.50 kW | Optimized for high diurnal solar yield |
| MPPT Inverter Setup | 48V / 8.2kW / 120A × 2 | Parallel configuration for seamless load scaling |
| System Output | 230V Rated / True Sine Wave | Clean, utility-grade power for sensitive electronic loads |
| Cabling & Interconnects | 2-roll 4mm Red/Black UV-Resistant Cable (100m) | Equipped with factory-sealed MC4 waterproof connectors |
2.2 Performance Optimization
High-Yield PV Generation
The deployment of N-type 550W panels ensures superior performance under low-light conditions and higher temperature coefficients, maximizing yield across long daylight hours.
Safe Energy Storage
Lithium Iron Phosphate (LiFePO₄) architecture paired with advanced 150A BMS guarantees protection against thermal runaway, extending overall asset lifespan past 6,000 cycles.
Resilient Conversion
Dual 8.2kW MPPT inverters deliver high surge capacity and robust phase balancing, ensuring absolute stability for critical infrastructure loads.
3. Key Results, Metrics
Following project completion in October 2020, the microgrid network successfully transitioned target infrastructure off fossil-fuel dependency, establishing a new benchmark for utility modernization in the region.
“The deployment of Sungreat Energy’s microgrid solution across our remote operational zones has completely redefined our reliability metrics. We have eliminated transmission losses and entirely cut out diesel logistics costs in these sectors, ensuring continuous, uncompromised power delivery for our regional grid network.”
— Lead Infrastructure Engineer, Nama Electricity Distribution Company
3.1 Performance Outcomes
- 100% Uptime: Zero unplanned outages reported across all 20 deployed units post-commissioning.
- Cost Reduction: Estimated 68% decrease in local maintenance and auxiliary fueling expenditures within the first year.
- Carbon Offset: Significant reduction in greenhouse gas emissions by replacing diesel generators with clean solar-storage technology.
3.2 International Publications
- [1] International Renewable Energy Agency (IRENA), Renewable Energy Market Analysis: GCC 2023, Abu Dhabi. Available: https://www.irena.org
- [2] Oman Authority for Public Services Regulation (APSR), Annual Performance Report on the Electricity Sector, Muscat, Sultanate of Oman. Available: https://www.apsr.om
- [3] IEEE Transactions on Sustainable Energy, “Optimal Design of Hybrid Microgrids for Arid Environments,” vol. 12, no. 4, pp. 2145-2158, Oct. 2021. DOI: 10.1109/TSTE.2021.3065123
- [4] Global Smart Grid Federation (GSGF), Case Studies in Microgrid Resilience and Rural Electrification, London, UK. Available: https://www.globalsmartgridfed.org
- [5] Elsevier Energy Policy Journal, “Economic viability of LiFePO₄ battery storage systems in desert microgrids,” vol. 156, p. 112450, Sep. 2021. DOI: 10.1016/j.enpol.2021.112450
