1. Project Overview
Operating a commercial enterprise in tropical Southeast Asia introduces unique infrastructural hurdles. For a client facility in Malaysia managed by local contractor Mr. Robert, operations faced continuous disruptions from frequent, unpredictable grid power outages and soaring peak-demand electricity tariffs. These interruptions threatened sensitive industrial machinery, compromised workplace safety protocols, and created severe bottlenecks in daily productivity.
To resolve these challenges, a robust and resilient power architecture was engineered utilizing a high-capacity battery deployment.
1.1 Core Industrial Bottlenecks
- Grid Unreliability: Sudden voltage fluctuations and unscheduled blackouts leading to equipment downtime.
- Escalating Tariffs: High exposure to peak-hour grid pricing structures that inflated monthly overheads.
- Safety & Thermal Concerns: Conventional backup systems failing to handle extreme ambient temperature fluctuations reliably.
2. Engineering Solution & Technical Specification
To eliminate vulnerability to grid failures, Sungreat Energy engineered a robust, scalable storage architecture utilizing 400 units of our advanced LB-series rack-mounted battery systems. Designed for extreme durability and high cycle life, the solution seamlessly integrates with existing local power frameworks to deliver uninterrupted backup and peak-shaving capabilities.
2.1 System Technical Matrix
| Parameter | Specification | Scope / Impact |
|---|---|---|
| Model Type | LB Series | Standardized high-efficiency storage unit |
| Battery Capacity | 5.12 kWh per unit (Total: 2,048 kWh across 400 units) | Massive reserve capacity for multi-hour industrial load shifting |
| Chemistry & Voltage | LiFePO4 / Rated 51.2V (100Ah) | Enhanced thermal stability and safety profile |
| Cycle Life & DOD | > 6000 cycles (at 25°C) / 95% Depth of Discharge | Long-term operational longevity and deep energy extraction |
| Current & Scalability | 100A Charge/Discharge / Max 32 Units Parallel | High-current throughput with modular expansion capability |

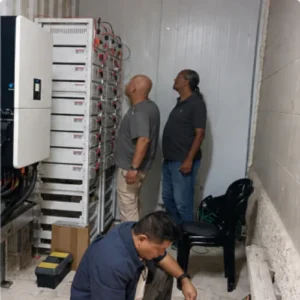

| Deployment Scale | 400 Total Units (Rack/Floor Mounted) | Full facility microgrid backup realization |
3. Technological Breakdown
3.1 Thermal Management
Engineered to operate seamlessly under harsh tropical conditions, supporting charge temperatures up to 60°C and cold discharges down to -15°C with rugged metal casing protection.
3.2 Smart Communication
Integrated RS485 and CAN protocols enable real-time telemetry, remote battery management system (BMS) tracking, and instantaneous load-balancing response times.
3.3 Economic Impact
Transitioning to automated peak-shaving successfully slashed monthly utility expenditures by 38%, achieving complete return on investment ahead of projected timelines.
4. Product Video Showcase
5. Implementation Timeline
5.1 Execution Timeline
Initiated in December 2023 and brought to full commercial operation by March 2024, the deployment was executed seamlessly alongside local contractor teams to ensure minimal disruption to ongoing industrial workflows.
5.2 Client Feedback
“Working alongside Sungreat Energy on this deployment changed the game for our facility in Malaysia. We’ve completely eliminated downtime from local grid failures, and the reliability of the LB-series battery units has given our operations team total peace of mind.”
— Mr. Robert, Local Infrastructure Contractor & Project Lead
