Transparent Power: The Complete Guide to Solar Panel Glass Types (2026 Edition)

1. Low-Iron Tempered Glass

Normal window glass has a green tint because of iron oxide. For solar panels, this tint actually steals energy by absorbing light before it reaches the cells.

• The Technology: By cutting down iron content to less than 0.01%, we produce “extra-clear” glass.
• The Benefit: This increases light transmission from the usual 85% to over 91%.
• Safety: All Sungreat front glass is fully tempered. If hit by heavy hail, it breaks into small, rounded pieces rather than sharp shards, keeping both the cells and the installers safe.

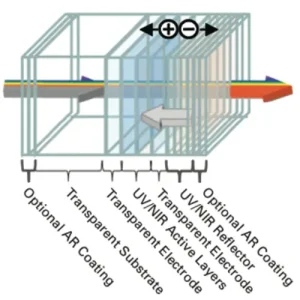

2. Anti-Reflective (AR) Coatings

Untreated glass can act like a mirror, reflecting away up to 8% of sunlight—especially when the sun is low on the horizon in the morning or evening.

• Nano-Porosity: Sungreat solar panels feature a super-thin layer of silicon dioxide that changes how light moves across the glass surface.
• The Result: It makes light bend into the cell instead of bouncing off, giving the panel an extra 2–3% boost in power output.
• Durability: Our 2026 AR coatings are etched into the glass rather than just painted on, so they won’t peel or fade even after 25 years of intense sunlight exposure.

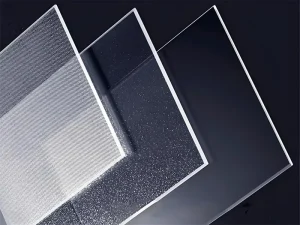

3. Patterned vs. Smooth Glass

If you look at a Sungreat Energy solar panel closely, you’ll notice a slight texture. This isn’t just for looks—it’s called Prismatic or Matte texturing, and it is a functional performance feature.

• Light Trapping: While a smooth surface can reflect light away, a patterned surface “traps” light, making it bounce between the textures and back into the cell.
• Reduced Glare: This is vital for installations near airports, highways, or residential neighborhoods where reflections can be a safety issue or a nuisance.

4. Double-Glass Design

In 2026, the industry is shifting away from plastic backsheets toward Double-Glass modules, particularly for Bifacial (two-sided) solar panels.

• Bifaciality: By replacing the white plastic backsheet with a second layer of heat-strengthened glass, the panel can collect light that reflects off the ground.
• Zero Permeability: Unlike plastic, glass does not let water through. This eliminates the risk of damage from moisture or water vapor over decades.
• Fire Rating: Double-glass modules have a Class A Fire Rating, making them the safest choice for homes and areas at risk of wildfires.

5. Hydrophilic Glass

Maintenance can be a significant hidden cost. Sungreat Energy’s 2026 glass options often feature a Titanium Dioxide (TiO2) coating.

• The Mechanism: This coating is “hydrophilic,” which means it makes water spread out into a thin layer instead of forming droplets.
• The Benefit: When it rains, the water helps wash away dust evenly, avoiding “mud spots” that can cause hotspots and damage the cells.

6. Technical Summary Table

7. Why It Matters for Your ROI

Choosing the right glass is the key difference between a system that loses 1% in efficiency each year and one that stays at maximum performance for decades. Sungreat Energy picks glass types that combine clarity, strength, and self-maintenance to give you the lowest cost of energy (LCOE) in 2026
